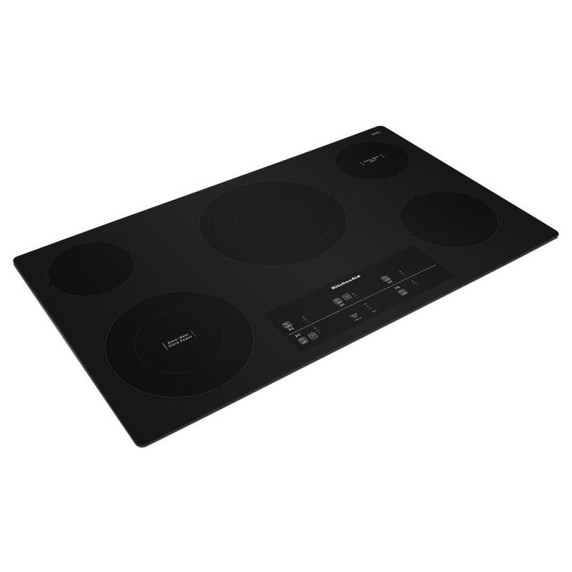

Kitchenaid® 36" Electric Cooktop with 5 Elements and Touch-Activated Controls KCES956KBL
KitchenAid
Kitchenaid® 36" Electric Cooktop with 5 Elements and Touch-Activated Controls KCES956KBL

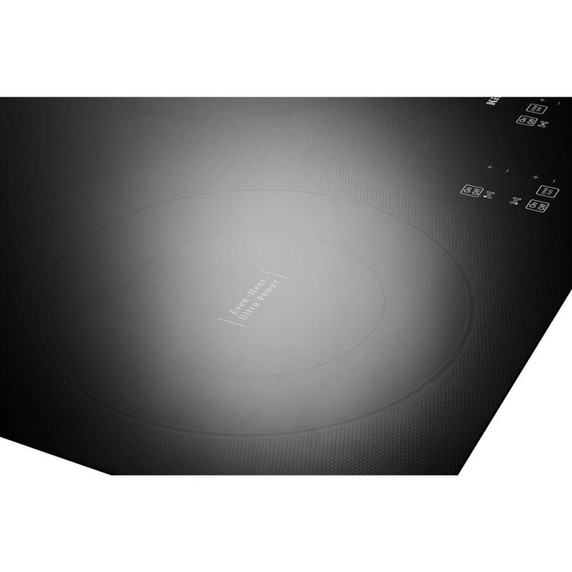

10''/6'' Even-Heat™ Ultra Power™ Element with Simmer SettingAdds versatility for high and low temperature cooking. Even-Heat™ Technology delivers constant power and a range of simmer settings. Two element sizes in one make it ideal for boiling, yet also accept small pans for various cooking tasks.

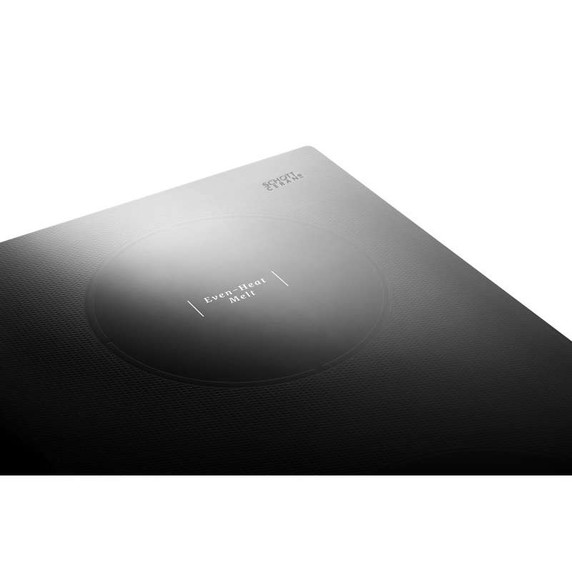

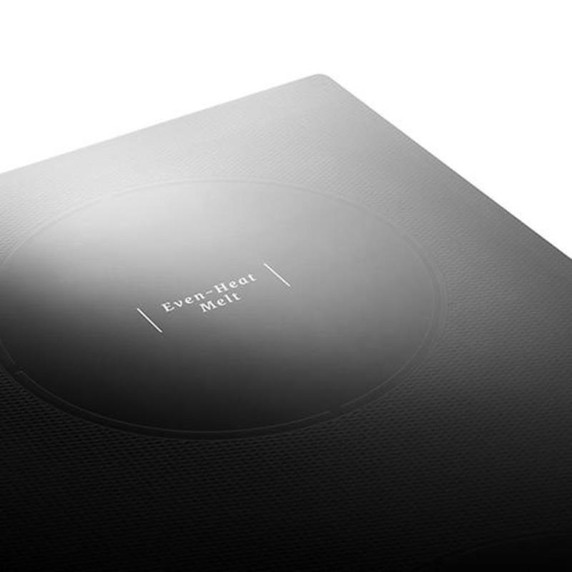

6'' Even-Heat™ Element with Melt SettingCombines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
12''/9''/6'' Triple-Ring Round ElementMaximizes your flexibility with three distinct sizes that allow for element selection based on cookware size.
8'' 1800-Watt Round ElementEfficiently heats a variety of pan sizes and can reach a power output of up to 1800-watts for every day use.
6'' 1200-Watt Round ElementCan reach a power output of up to 1200-watts to handle your daily cooking needs.
Touch-Activated ControlsIntegrate seamlessly into the surface and include a slider for heat-level selection.
Hot Surface IndicatorProtects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.
Control LockHelps prevent unintended use and makes it easier to clean the control panel.
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW07IW2Y, EW07IW4Y, EW07IW1Y
Product To Product PairsKVUB606DSS, KXD4636YSS, KVUB406GSS, KVIB606DBS, KVWB606HBS, KVWB406DSS, KVWB606DSS, UVL6036JSS, KVIB606DSS
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Left Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Size6in.
Number Of Cooking Element Burners5
Right Front Element Burner TypeStandard
Right Front Element Burner Size8in.
Left Front Element Burner Size10in./6in.
Right Rear Element Burner Power1300W
Left Front Element Burner Power3200/2300W
Center Rear Element Burner Power3000/2200/1100W
Center Rear Element Burner Size12in./9in./6in.
Center Rear Element Burner TypeTriple
Right Front Element Burner Power1800W
Right Rear Element Burner TypeEven Heat
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Automatic Pan Size AdjustmentNo
Configuration and Overview
Fuel TypeElectric
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Controls
Control TypeManual
Control LocationFront
Depth20.25"
Height3.63"
Minimum Height3.83"
Net Weight44.0 lbs.
Width34.43"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch40.75
